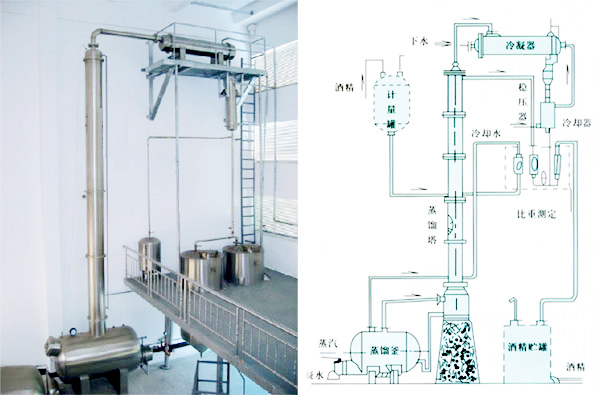

| Alcohol recovery tower | | |
| This device is suitable for pharmaceutical, food, light industry, chemical industry, dilute alcohol recovery, but also to other solvent methanol distillation of coal. The device according to the needs of users, according to about 30 ゜ C dilute alcohol distillation to 90 ゜ ゜ C-95 C alcohol, the number of required precision and then finished high tartaric acid, can increase the reflux ratio, but the output will be correspondingly reduced. |
 |
| The equipment uses highly efficient stainless steel filler metal. Distillation column of stainless steel, thus preventing the phenomenon of column iron block, the Director of the device lifetime. Any contact with this device, such as alcohol device part of the condenser, regulator tank, cooling coil all adopts stainless steel to ensure that the finished product is not contaminated alcohol. Distilling apparatus with removable U-heating pipe work, the maintenance may be pulled out U-tube heating reactor, the convenience of heating and distilling apparatus, the exterior wall cleaning. The device can batch production, but also semi-continuous and continuous production. |
|
Name / specifications
|
JH200
|
JH300
|
JH400
|
JH500
|
JH600
|
JH800
|
|
Column volume（L）
|
640
|
1220
|
1450
|
2300
|
2500
|
3200
|
|
Tower height（mm）
|
6000
|
7000
|
7000
|
7500
|
8000
|
10000
|
|
High volume tank（L）
|
300
|
400
|
650
|
800
|
1000
|
1500
|
|
Condensation area（m2)
|
5
|
9
|
11
|
22
|
25
|
40
|
|
Cooling area（m2)
|
1
|
1.5
|
2.2
|
6
|
8
|
15
|
|
Heat transfer area(m2)
|
4
|
6
|
12
|
18
|
25
|
32
|
|
Subject to capacity（kg/h)
|
45-50
|
90-100
|
150-160
|
280-300
|
420-440
|
600-620
|
|
Recycling levels(%)
|
90゜C-95゜C
|
|
Form filler
|
不銹鋼波紋填料
|
|
Equipment weight（Kg)
|
1100
|
1900
|
2300
|
3800
|
4500
|
7800
|
|
Dimensions（mm)
|
2300×700×8000
|
2600×800×9000
|
2800×1000×9000
|
3000×1200×9000
|
3500×1400×10000
|
4200×1800×14000
|
|
